Silicon Carbide

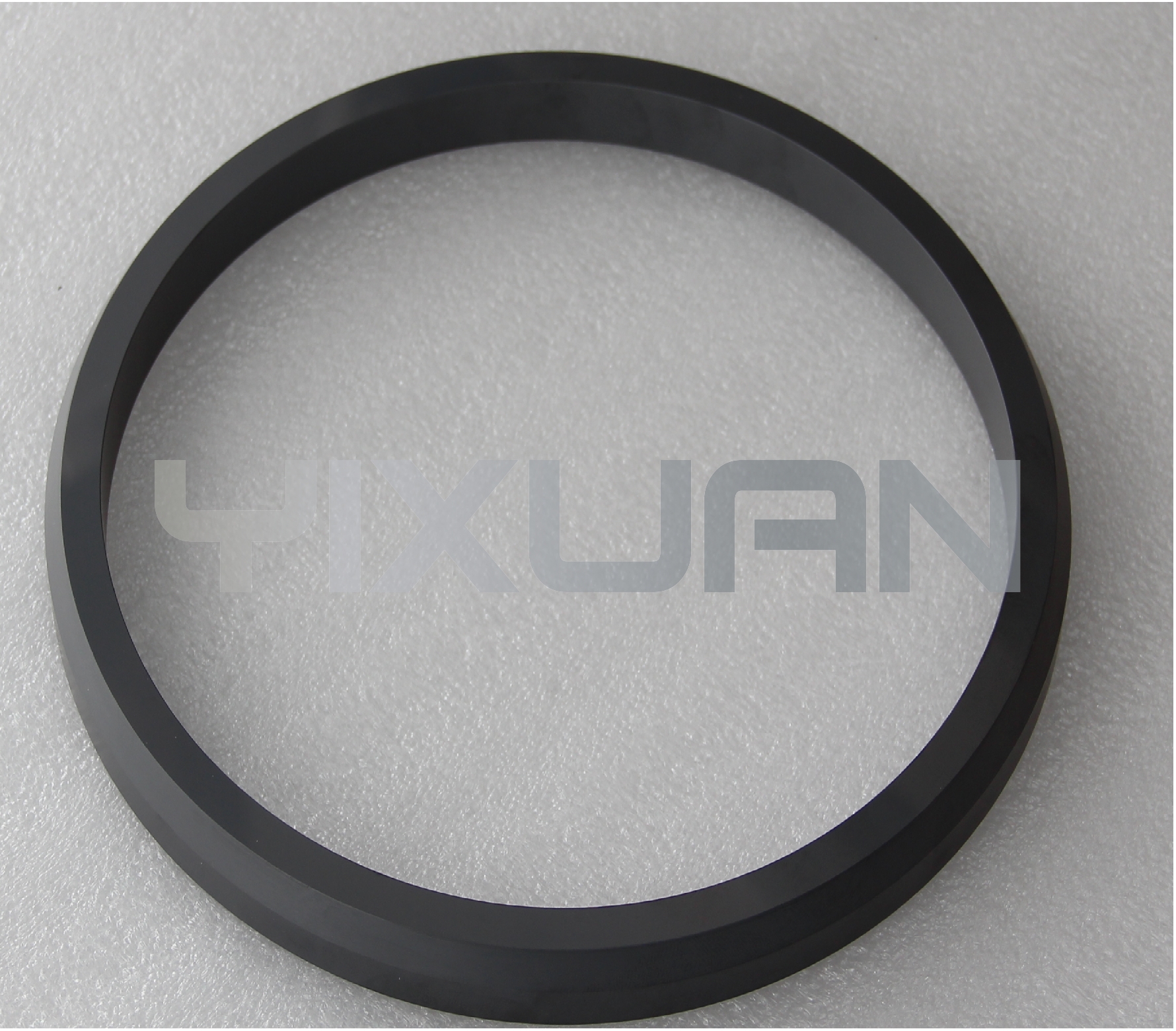

It is the best material for sealing face up to now, extensively applied in mechanical seals as rotary and stationary faces. Comparing with Tungsten Carbide, silicon carbide has advantages of low density, better corrosion and thermal resistance, low friction coefficient. Also, due to its extremely high hardness property, Silicon Carbide is widely applied in Mechanical Seals as hard faces/rings.
Feature:
· Extra high hardness ·High temperature resistance
·Excellent thermal transmittance ·Better corrosion/friction resistance
·Good acid media resistance ·Economical material
SiliconCarbide | Sintered Silicon Carbide | SS iC |
Reaction Bonded Silicon Carbide | RB SiC | |
Carbon Loaded Reaction Bonded SiliconCarbide | RB SiC+C Remarks: better self lubrication performance |
Parameter | Unit | RBSiC | SSiC |
Density | g/cm3 | 3.0-3.05 | 3.1 |
Free Silicon Content | % | 12% | - |
Crystal Size | µm | 8-20 | 5-7 |
Hardness | Rockwell | HRA90 | >HRA93 |
Compressive Strength | MPa | 2700 | 3000 |
Flexural Strength | psi | 391,500 | 435,000 |
MPa | 400 | 400 | |
psi | 58,000 | 58,000 | |
Fracture Toughness | MPam1/2 | 4.3 | 4.5 |
Elastic Modulus | GPa | 390 | 410 |
Coefficient of | psi | 57x 106 | 59x 106 |
Thermal Expansion | 1x 10-6/K | 4.3 | 4.3 |
Parameter | Unit | RBSiC+C |
Density | g/cm3 | 2.7 |
Carbon Content | Wt. % | 30 |
Hardness | Rockwell | HRA82 |
Compressive Strength | MPa | 1500 |
psi | 217,500 | |
Flexural Strength | MPa | 200 |
psi | 29,000 | |
Elastic Modulus | GPa | 250 |
psi | 36.3 x 106 |
Ps: value above is average level.
